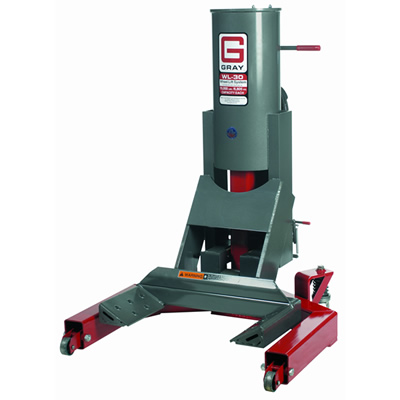

Gray WL-30 Wheel Lift System

This wheel lift system features:

• Portable design eliminates the need for a dedicated bay
• No more time wasted removing aerodynamics or ferrings from the vehicle
• Perfect solution for shops with low ceilings
• 100% Air Operated

Lifts one end of a wide array of vehicles, fire or refuse trucks, heavy recreational vehicles or motor coaches. Wide, spring loaded base provides stable platform for secure lifting.

Specifications

Capacity per Set of Two: 30,000 lbs
Minimum Start Height: Floor Level
Maximum Lift Height: 24”
Power: Shop Air
Required Air Pressure: 160 PSI
Stroke: 24”
Minimum Wheel Diameter [w/Adaptors]: 16”
Minimum Wheel Diameter [w/o Adapters]: 19.5”
Maximum Wheel Diameter: 24.5”
Overall Width: 41 9/16”
Overall Depth: 44.25”
Overall Height: 53.25”
Shipping Weight: 1,500 lbs
